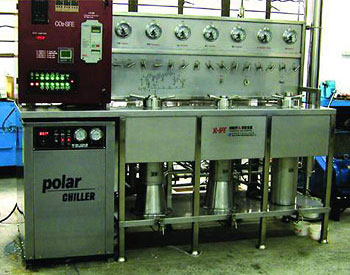

| Extraction technique: |
Supercritical carbon dioxide (CO2) |
| Sample form: |
Liquid, solid & powder |
| Mesh size: |
Material with size 22-40 mesh |
| High pressure pump: |
42 Mpa |
| Flow rate: |
100 l/hr |
| Co-solvent pump: |
42 Mpa |
| Flow rate: |
10 l/hr |
| Extractor maximum pressure: |
42 Mpa |
| Extractor maximum capacity: |
5 Litres |
| Number of extractor : |
1 |
| Number of Separators: |
Separation column (1 pc),
Separator (2 pcs) |
| Extractor maximum temperature: |
90 deg. C |
| Material vessel: |
3.75 Litres |
| Separation column maximum pressure: |
22 MPa |
| Separation column maximum temperature: |
90 deg. C |
| Separation column maximum capacity: |
4 Litres |
| Separator pressure: |
9.8 Mpa |
| Separator maximum temperature: |
90 deg. C |
| Flow meter: |
0-250 L/hr |
| Supercritical medium: |
Food grade carbon dioxide (CO2),
purity > 99.5%, Moisture < 0.2% |
| Electronic connection: |
3 x 380V + N + PE / 50Hz |
| Power consumption: |
25 kW |
| Electricity control cabinet: |
60 amps |
| Water supply: |
> 2 bar |

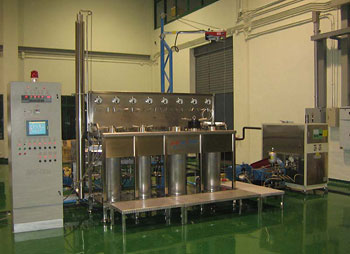

| Extraction technique: |
Supercritical carbon dioxide (CO2) |
| Sample form: |
Liquid, solid & powder |
| Mesh size: |
Material with size 22-40 mesh |
| Extractor maximum pressure: |
32 Mpa |
| Extractor maximum capacity: |
24 Litres |
| Number of extractors: |
2 pcs |
| Number of Separators: |
Separatioin column (1pc), Separator (2pcs) |
| Extractor maximum temperature: |
90 deg. C |
| Separation column maximum pressure: |
22 MPa |
| Separation column maximum temperature: |
90 deg. C |
| Separation column maximum capacity: |
8 Litres |
| Separator pressure: |
9.8 Mpa |
| Separator maximum temperature: |
90 deg. C |
| Separtor maximum capacity: |
10 lites |
| Supercritical medium: |
Edible carbon dioxide (CO2), purity > 99.5%
Moisture < 0.2% |
| Electronic connection: |
3 x 380V + N + PE / 50Hz |
| Power consumption: |
25 kW |
| Electricity control cabinet: |
60 amps |
| Water supply: |
> 2 bar |
